Guillemin Hose Coupling

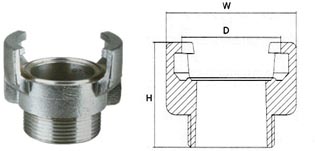

08-039G-00 Guillemin Adaptor with Male Thread

Size	H(mm)	W(mm)	D(mm)	Thread
DN20	46	49	32	G 3/4"
DN20	46	49	32	G 1"
DN25	47	55	37.5	G 1"
DN32	50	62	42.5	G 1 1/4"
DN40	58	72	55	G 1 1/2"
DN50	69	90	69	G 2"
DN65	70	105	84	G 2 1/2"
DN80	75	125	103	G 3"
DN100	86	150	123	G 4"

08-039H-00 Guillemin Adaptor with Female Thread

Size	H(mm)	W(mm)	D(mm)	Thread
DN20	46	49	32	G 3/4"
DN20	46	49	32	G 1"
DN25	47	55	37.5	G 1"
DN32	50	62	42.5	G 1 1/4"
DN40	45	72	55	G 1 1/2"
DN50	53	90	69	G 2"
DN65	58	105	84	G 2 1/2"
DN80	60	125	103	G 3"
DN100	74	150	123	G 4"

08-078-00 Guillemin Hose Coupling

Size	H(mm)	W(mm)	D(mm)	Tail
DN50	250	92	69	53.5mm
DN80	288	131	103	70mm

08-130-00 Guillemin Hose Coupling with Male Thread

Size	H(mm)	W(mm)	Thread	Tail
DN50	110	69	G 2"	53.5mm
DN80	131	95	G 3"	70mm
